Customer’s ‌requirements:

·      Valve function and connection: On-off, Eccentric Rotary plug valve, Wafer type

·      Valve size and pressure: DN150, PN25

·      Medium parameters: Waste water, -29~+220 °С

·      Actuator and accessories: Electrical actuator

Miwival’s ‌solution:

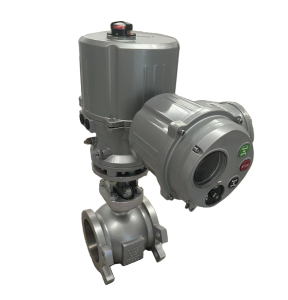

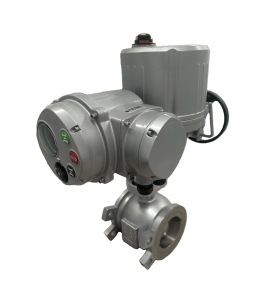

·      Valve type: Eccentric Rotary plug valve, Wafer, DN150, PN25

·      Valve material: Body: CF8, Trim: SS304+STL, Stem: SS304+STL, Seat: SS304+STL

·      Parameters of actuator and accessories: Smart control type electric actuator, Voltage AC220V/50Hz, with Limit switches 24 V, with manual override, with control panel

·      Available functions: Keep last position when power off, Emergency manual control, Valve position indication
