Customer's ‌requirements:

·      Valve function and connection: Plug valve, Flange type

·      Valve size and pressure: DN100, PN10

·      Medium parameters: P2O5 up to 55%, F - 0,5%, SO3 -4,5%, Cl - 0,005%, H2O, CaSO4x0,5H2O, 85~87.5 °С

·      Actuator: Manual

Miwival's ‌solution:

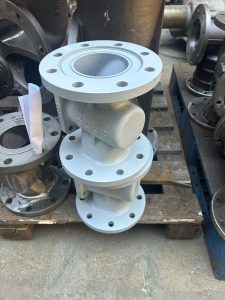

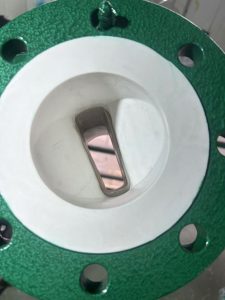

·      Valve type: PTFE lined plug valve, Flange, DN100, PN10

·      Valve material: Body: WCB+PTFE, Trim: WCB+PTFE, Seat: PTFE, Stem: 2CR13+PTFE

·      Actuator: SS304 handlever

·      Available functions: Corrosion-resistant
