Design and Structure of 3 Piece Ball Valves

Key Components and Materials Used

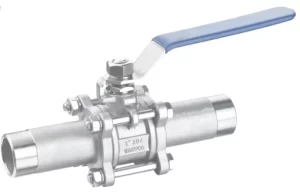

A 3 piece ball valve is a device, which is often used to control the flow of liquids in a pipeline. It is different from other types of ball valves because it is made up of three separate pieces, namely two end pieces and a middle section in which a spherical disc is located. The main advantage of this type of construction is that it is much easier to achieve by maintenance because the units can be easily disassembled. Moreover, each of the units can be easily replaced, which means that it is never necessary to take the valve as a whole from the pipeline. The materials used to make these devices usually include stainless steel, carbon steel, and a range of other types of alloys, which are usually used for such purposes, in order to make the product durable and resistant to corrosion. The use of high-quality sealing substances and packing material also plays a significant role in enhancing the properties of the valve and thus prolonging its service life.

Typical Manufacturing Processes

Manufacturing the 3 piece ball valves presupposes using complex machining and assembly technologies to produce quality products. The components of the valves are often obtained from investment casting or forging, after which they are machined to reach the required dimensions and clearances. The assembly process usually consists of fitting the parts, such as a ball, seat, and stem. This part of the production process focuses on carefully adjusting each valve part and ensuring that it is snugly fit. The developed quality assurance processes typically include pressure testing and leak testing to confirm the valves’ correspondence with industry standards.

Comparison with Other Types of Ball Valves

One-Piece Ball Valve

The one-piece ball valves are those units designed as a single piece and often used in a range of applications. However, these units also have specific operational limitations. Contrary to the 3 piece design, they lack the ease of maintenance. It means that every time any part becomes worn or if there is any sort of clog, the whole valve has to be removed from the piping system for repairs or replacements. Its reduced versatility is also the case.

Two-Piece Ball Valve

A two-piece ball valve might be perceived as a compromise between one-piece and three-piece designs. In the case of two-piece valves, an increased number of parts means some degree of serviceability, provided by two main components. Yet there are still restrictions due to the potential leakage of oil in the stem area, as well as a greater chance of leakage through a packing gasket compared to the previous option. Meanwhile, the three-piece ball valve is improved in comparison with the two-piece one due to the ease of removing individual sections and replacing them without removing the item from the pipeline.

Operational Efficiency and Reliability

Enhanced Durability and Maintenance Ease

3 piece ball valve is engineered to last longer and easier to maintain. The reason for this design is that a technician or whoever is responsible can replace the parts that are worn or damaged without requiring special tools and not complete disassembling. The independent packing gland adjustment is another reason for this design, one of the advantages is the half of the split body can be removed hence ensuring that the face of the flange is clean. Depending on the service valves like the packing gland should be adjusted to ensure that there is a tight seal and also reduce the chances of valve leakage. The valves also provide the use of live loaded packing configurations compensating for wear and changes in the environment making it maintenance-free on some of that time and over a long period of time. Miwival‘s 3-piece ball valve provides reliable performance and convenience for various applications.

Performance Under Extreme Conditions

Reliable functioning under severe conditions is one of the specific advantages of the 3 piece ball valves. The item in question can continue to function under high pressures and temperatures due to the heavy-duty design and the material used. Because the body joint sealing is connected to the sealing of the seats, which is done by a double-seal system, with the primary one being elastomeric seals, and the secondary one, being graphite seals, there are practically no environments the item would fail in. A further advantage is the presence of anti-static devices and safe-fire features. There would be no valid argument against considering any alternative, especially in the case of extreme performances. Thus, 3 piece ball valves remain widely used in all industries where some applications are critical, starting with oil and gas and ending with chemical processing.

Miwival Solutions for Industrial Needs

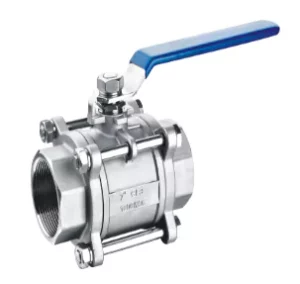

Overview of Miwival’s 3 Piece Ball Valves

Miwival offers 3 piece ball valves that are ideal for industrial use. They are built well and are safe to use in any industrial place. The valves are built with a fire-safe secondary metal seat, and this design is API 607, making it reliable for use in case of extreme conditions. High-quality graphite is fitted to prevent leaks. It also has an internal trunnion that ensures the ball is stable, and seat wear and tear is uniform so the valve works for a more extended period before maintenance.

A pressure-energized stem packing system characterizes Miwival’s 3 piece ball valve enhancing sealing to the highest degree under different pressure conditions. This particular design also contributes to the higher level of the system’s reliability and has earned a patent for the creators. The second peculiar feature of these valves is their anti-static devices, which considerably eliminate spark-generated hazards related to static charges.

Furthermore, unique features like clear valve position indication help technicians determine the open or closed status of the valve quickly without any complicated procedure. The ISO 5211 mounting pad allows easy integration with any automation solution such as actuators. Modern industrial operations require high levels of flexibility and the Miwival 3 piece ball valve is engineered not just for performance but for easy integration into any application setup.

Other Miwival Products

Besides 3 piece ball valves, Miwival offers a vast range of industrial valves, including pinch valves, tailored to specific operational requirements and ensuring efficiency and reliability.

Pinch Valves

Miwival’s pinch valves are highly effective for a wide range of fluids, especially those with solid particles or toxicity concerns. They excel in situations where standard valve designs may clog or block. The design’s simplicity and ease of maintenance are key advantages, as only the damaged sleeve needs to be replaced. This is particularly beneficial in systems where valve maintenance can disrupt operations or contaminate fluids. Additionally, the valves are made from durable elastomers, ensuring a long lifespan and repairability in harsh conditions. Overall, Miwival’s pinch valves offer accurate flow control and easy maintenance.

In summary, whether it is the unique features of the 3 piece ball valves or dependability of pinch valves, Miwival offers a broad range of solutions that are tailored specifically to meet a wide variety of industrial needs. Thus, customers can be certain that they will conduct their businesses in a safe and efficient manner in the industry.
