Understanding Rubber-Lined Butterfly Valves

Definition and Functionality

Fluid control systems utilize rubber-lined butterfly valves due to their effectiveness in the management of flow rates and flow of liquids or gases in industrial processes where precision is vital for smooth operations and system rigidity. These valves have a one-piece construction with a molded in-seat feature to improve overall pressure resistance and suitability, for high-speed fluid applications where high performance is needed under harsh conditions. The unique rubber-lined butterfly valve configuration enables them to offer bidirectional sealing capacity and effectively shut off the flowing media from the valve body or stem for complete system integrity and consistent operation over a wide range of industrial services.

Types of Rubber Linings

Rubber-lined butterfly valves can be more versatile due to the various rubber linings available for them to choose from such as BUNA N Food Grade and EPDM Food Grade among others like FKM and White BUNA N Food Grade options. Each with its unique benefits tailored to specific needs and uses. For example; EPDM stands out for its ability to withstand heat and moisture as well as steam which makes it a great choice, for applications where high temperatures are involved. In contrast, BUNA N offers protection, against oils and fuels making it well-suited for specific industrial applications.

Benefits of Using Rubber-Lined Butterfly Valves in Fluid Control Systems

Enhanced Durability and Longevity

Rubber-lined butterfly valves have been designed to offer improved strength and longevity in controlling fluid systems effectively The connection between the disc and stem minimizes hysteresis effects and using resilient seat materials ensures a prolonged cycle life Moreover The inclusion of an ISO 5211 flange makes it convenient for automation through pneumatic or electric actuation for both on/off and modulation purposes All these attributes work together to create a valve that demands minimal upkeep and delivers consistent performance, over long durations

Improved Sealing Capabilities

Rubber-lined butterfly valves offer an advantage with their enhanced sealing abilities as they ensure there is no leakage during operation due to their tight sealing in both directions—a crucial factor for maintaining system efficiency and preventing any contamination or loss of media during use. Additionally, the valves feature relief slots on the seat’s diameter to release pressure past the upstream seat in scenarios like trapped gas, within the valve body to handle unexpected situations effectively.

Application Areas for Rubber Lined Butterfly Valves

Industrial Applications

Butterfly valves with rubber lining find use in a variety of industrial settings because of their versatility and dependability. Sectors like oil and gas industries benefit greatly from these valves due to their capability to manage types of substances efficiently while maintaining secure closure and effective flow regulation. One advantage is the ease of installation provided by their design as they need minimal pipe reinforcement compared to alternative valve options.

Environmental and Water Management Systems

Rubber coated butterfly valves are crucial in environmental and water management setups for regulating water flow and optimizing resource utilization efficiently. They prove beneficial in wastewater treatment facilities by effectively controlling fluid movement and preventing potential leaks that could harm the environment. Their capacity to offer sealing in both directions with a metal seat even after prolonged use makes them essential, for applications that demand reliable sealing solutions of high integrity.

Installation and Maintenance Considerations

Installation Guidelines

Installing rubber lined butterfly valves correctly is crucial for their functioning and durability over time. Having the valves properly aligned with the pipeline is essential to avoid putting strain and pressure that could cause premature damage or malfunctions. It’s important to make sure that the flange faces are, in alignment and that the bolts are tightened evenly across the flange to ensure a seal and prevent any potential leaks.

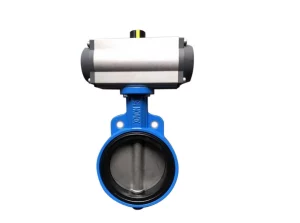

Furthermore, the use of an ISO 5211 flange enables straightforward automation making it easier to incorporate pneumatic or electric actuators for both on/off and modulation purposes. This characteristic boosts the versatility and adjustability of rubber-lined butterfly valves, in system setups.

Maintenance Tips

To keep rubber-lined butterfly valves in working order it’s important to conduct regular inspections and maintenance checks to ensure they work effectively over time. Verify the rubber linings condition regularly. Look for any signs of wear or damage. The valve’s ability to seal tightly in both directions helps detect minor leaks early enough for prompt maintenance actions.

Perform lubrication on the moving components as outlined by the manufacturer’s instructions to minimize friction and prolong the lifespan of the valve parts. The connection, between the disc and stem minimizes hysteresis to ensure consistent performance as time goes on. Regularly checking this connection can help avoid problems and enhance the overall durability of the valve.

Innovative Solutions by Miwival in Fluid Control Systems

Miwival provides cutting-edge solutions for control systems through our selection of high-quality valves tailored for a wide range of industrial uses. Our ball valves are specifically crafted to guarantee leak closure and require minimal effort to operate making them ideal, for challenging settings that demand accuracy and dependability.

Miwival products stand out for their design elements like the separate packing gland that enables simple adjustments without needing to remove any mounting hardware or the operator themselves – guaranteeing hassle-free maintenance and a durable lifespan over time. Additionally, the use of seat materials that offer tight sealing in both directions adds to their effectiveness, in high-pressure settings.

By harnessing these cutting-edge capabilities and innovations Miwival consistently establishes standards, in fluid management systems enabling industries to access dependable solutions that boost effectiveness, safety, and environmental friendliness across a variety of uses.

Butterfly valve FAQ

Q: What is the purpose of the butterfly valve?

A: Butterfly valve is a mechanism that regulates the flow of materials within large pipe diameters by the quarter-turn rotation of a disc. A rod feeds through the center of a disc and this rod is connected to an actuator that controls the motion of the disc.

Q: What is a butterfly valve suitable for?

A: Butterfly valves are frequently employed in water distribution, chemical processing, low-pressure applications, and more. They are suitable for throttling and fully open or closed applications, providing efficient flow control and regulation across multiple settings.
