Understanding the Functionality of Ball Valves

Ball valves are used in piping systems and are renowned for being best suited to control flow precisely and smoothly. These valves are highly appreciated for their design and uniform performance, in a vast majority of applications.

Basic Operation of Ball Valves

The way ball valves work is simple but very efficient indeed! A ball valve includes a ball with a hole called a port in it. The action of turning the valve handle causes the ball to rotate and either permit or prevent the flow. By opening up the valve the port lines up with the pipeline enabling a passage, for the fluid. On the contrary in its state, the solid part of the ball hinders any flow ensuring a secure seal.

Key Components of a Ball Valve

Ball valves are made up of several elements that play a role in how they work efficiently with the primary components being;

• Body: The outer casing that holds all other components together.
• Ball: The central component with a hole that regulates flow.
• Stem: Connects the ball to the external control mechanism.
• Seats: Provide sealing around the ball to prevent leakage.
• Handle/Actuator: Used to manually or automatically operate the valve.

These parts collaborate to guarantee operation and accurate management of fluid flow, in pipe systems.

Advantages of Using Ball Valves in Piping Systems

Ball valves present benefits that position them as a top pick for different requirements, in piping systems.

• Quick Operation: They allow for rapid opening and closing, which is beneficial in emergencies.
• Tight Sealing: The design ensures minimal leakage, maintaining system integrity.
• Minimal Pressure Drop: Their full-bore design reduces pressure loss across the valve.
• Durability: Constructed from robust materials, they withstand high pressures and temperatures.

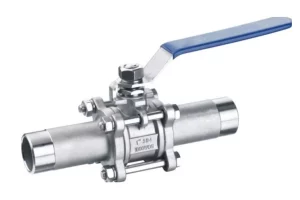

Benefits of 3-Piece Ball Valves in Piping Systems

Using three-piece ball valves, in piping systems provides added advantages that improve the efficiency and dependability.

Durability and Reliability

Three-piece ball valves are specifically developed to provide durability and long life in diverse working conditions. Construction material is selected particularly to provide wear and corrosion resistance for long life even under severe applications.

Ease of Maintenance and Repair

A major benefit of employing 3-piece ball valves is how easily they can be serviced and repaired. Their uncomplicated design makes it possible to disassemble and reassemble the components without any specialized tools. This aspect leads to fewer disruptions, during maintenance, and makes them overall more effective.

Versatility in Various Applications

3-piece ball valves are highly versatile. Can be used in various industries for different purposes. They can work with a variety of substances like liquids, gases, and slurries making them a flexible option, for piping systems.

Comparing 3-Piece Ball Valves with Other Valve Types

To truly understand the advantages of 3-piece ball valves in piping systems it is crucial to contrast them with the other valve types commonly utilized.

Differences Between 3-Piece Ball Valves and Gate Valves

When comparing 3-piece ball valves and gate valves for flow control purposes there are variations, in their functions.

• Operation Speed: Operation Speed: 3-pieceball valves offer more rapid operation compared to gate valves due to their quarter-turn operation.
• Sealing Capability: Sealing Capacity: Ball valves possess greater sealing capacity, reducing leakage risk.
• Maintenance Needs: Gate valves will generally require more maintenance due to the complex internal system.

How 3-Piece Ball Valves Compare to Butterfly Valves

In the comparison, between three-piece ball valves and butterfly valves;

• Accuracy in Flow Control: Ball valves provide more accurate flow control compared to butterfly valves.
• Pressure Handling: They can endure higher pressures without compromising performance.
• Installation Space: Butterfly valves are more compact but may not form as tight of a seal as ball valves.

Situations Where 3-Piece Ball Valves Excel Over Other Types

In situations 3-piece ball valves excel over other types of valves.

• In high-pressure applications where tight sealing is crucial.
• When quick shut-off is necessary for safety reasons.
• In systems requiring minimal pressure drop for efficient fluid transfer.

Miwival variety of 3-piece ball valves showcases these benefits with its unique features, in action. The safety aspect is reinforced with the FIRESAFE DESIGN, which incorporates a metal seat following API 607 guidelines. The INTERNAL TRUNION DESIGN by Miwival addresses ball floating concerns and decreases seat pressure. Their PRESSURE ENERGIZED STEM PACKING improves sealing reliability by utilizing media pressure.

Miwival double seals on body joints guarantee no leaks in conditions and offer extra protection with secondary graphite seals in extreme temperatures for added safety measures. Moreover, the anti-static devices in the valve assembly maintain connectivity to prevent any static discharge problems, from occurring.

Miwival products provide valve position indication to enhance operational clarity and feature an ISO 5211 mounting pad for easy automation integration purposes. Additionally, the Miwival blowout-proof stem design ensures safety by preventing stem blowout during line pressure conditions.

Miwival products stand out as options, for individuals looking for long-lasting and dependable solutions designed to meet the needs of complex piping systems.

Choosing the Right 3-Piece Ball Valve for Your Needs

When you’re choosing a 3-ball valve, for your piping setup there are a few things to think about to make sure it works well and fits your needs just right.

Factors to Consider When Selecting a 3-Piece Ball Valve

• To make your system work properly it’s crucial to take into account its needs such as the nature of the substance it handles (liquid, gas, or slurry) as well, as the required flow rate when choosing a valve to effectively manage the flow characteristics.
• Ensure to consider the temperature and pressure conditions under which the valve will operate and select a valve that performs well within these conditions without compromising its performance or reliability.
• Types of end connections should be carefully considered for integration with your current piping setup. Typical choices include threaded connections or flanged and welded connections, for various applications.
• Method of Activation; Decide if manual operation suffices or if an automated activation method is needed for control or integration, with a control system.
• Taking into account maintenance and accessibility is important when evaluating the ease of accessing and upkeeping a valve installation process as valves that are simple to dismantle and put back together can minimize disruptions during maintenance tasks.

Sizing and Pressure Ratings

Ensuring the size of a three-piece ball valve is crucial for effective flow management while preventing an unnecessary increase in pressure, within the system.

• Valve Size: Select a size that matches the pipeline diameter to minimize flow restriction. Oversized valves can lead to poor control, while undersized valves may cause increased pressure loss.
• Pressure Rating: Ensure the valve’s pressure rating exceeds the maximum operating pressure of your system to prevent failure under high-pressure conditions.

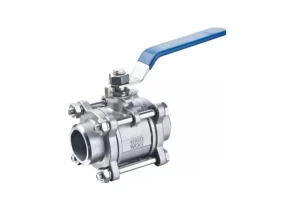

Miwival: Offering Quality 3–Piece Ball Valves

At Miwival they are known for their notch 3-piece ball valves that cater to a wide range of industrial requirements boasting precise engineering and innovative functionalities.

Overview of Miwival’s Product Range

A wide selection of 3-piece ball valves is provided by Miwival to suit needs, in various industries. They put a focus on designing their products meticulously to guarantee consistent performance even in challenging environments.

Advantages of Miwival’s 3-Piece Ball Valves

The 3-piece ball valves, from Miwival have a range of benefits that make them stand out from their competitors.

• The secondary metal seat design ensures a shut-off as, per API 607 standards to improve safety during fire emergencies.
• The internal trunnion design stops the ball from moving by securing it with upper and lower bearing plates to lessen the strain on the seats.
• Miwival exclusive energizer ring applies pressure on the packing, through media pressure to improve the sealing effectiveness even in cases where the primary O ring stem seal is compromised.
• The primary rubber seals prevent any leaks, in situations and extra graphite seals offer added security in cases of extreme temperatures according to API 607 standards.
• Standard anti-static devices are in place to make sure there is a flow of electricity between the components, in the valve assembly preventing any sparks that could result from static charges.
• The valve position indication is marked on the mounting flange to show whether it is open or closed depending on the orientation of the stem key, which helps improve clarity.
• The sturdy mounting pad makes it easy to switch between operation and automation kits enabling smooth integration, into automated systems.
• Blowout-proof stem design: Designed with stem/body connection preventing blowout under line pressure ensuring safety during operation.

Miwival impressive features set them apart as top picks for individuals in need of lasting solutions designed precisely for challenging piping system needs. They maintain their position as a frontrunner, by offering products that adeptly address intricate industrial demands showcasing their dedication to superior engineering quality.

FAQ

Q: What is a ball valve used for?

A: Ball valves are shut-off valves used to allow or obstruct the flow of fluids by rotating the ball having a bore inside it by 90°. They can be operated manually or by an actuator. Ball valves consist of the ball, shaft, and seat which are contained in the valve housing.

Q: Why do you need a ball valve?

A: Ball valves are mainly used to control the flow of high pressure liquids and gas lines. This is because they do not cause any drop in pressure or restrict fluid movement when fully opened. They are mainly used when the supply pipe has an inner diameter of 6 inches or less. Ball vales are used to control gas flows.
