Miwival three-way valves work safely and reliably as mixing valves and dividing valves in heat transfer technology

and processes with sometimes enormous loads.

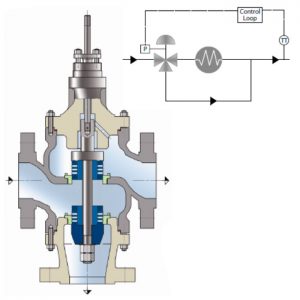

Three-Way control globe valves are generally used either to mix flowing medium or to divert on medium into two outlet flows, and are often used when fluid temperature is to be adjusted through heat exchangers.

Mixing-type valves also can be used for diverting service when both the nominal size pressure differential is small.

However, the mixing type is more suitable when the nominal size is larger than 4” and the pressure differential is also considerable.

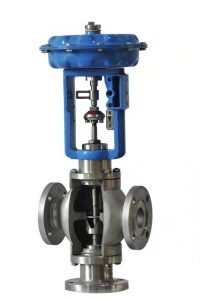

Standard 3-Way valve combine diaphragm actuator with multi-spring.

For example, in cooling and heating circuits in almost all industrial applications, such as marine diesel, heat exchangers and calender presses. Due to their extremely short switching times, our three-way valves are also used for cooling water control on wire rod mills. The Miwival valve is designed to be used as a dividing valve or mixing valve, depending on the application. In the case of the separating function, the incoming medium is distributed into two individual streams. This distribution can take place in a ratio of 1:1 or in any different ratio. In the case of the mixing valve, on the other hand, two media to be mixed are brought together in the valve body and leave the three-way valve in the desired new state. The robust construction in modular  design is precisely tailored to your medium and your process due to the choice of material, the connection to the piping system or the versatile trims.

FEATURES

• · LARGE CAPACITY
• · REASONABLE FLOW CHARACTERISTICS
• · DURABLITY
• · ECONOMICAL
• · EASY TO INSTALL & MAINTENANCE

Our complete range of actuators and controllers is available for control.
